Bag Making Length 440mm Zipper Bag Making Machine With Three Side Sealing Type

Brand Name : CJ

Model Number : 500

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T

Supply Ability : 30sets/months

Delivery Time : 25 working days

Packaging Details : plastic film wrapping

Power Supply : 3 Phase 380V/50HZ

Machine Dimension : L1300 X W2000 X H2200mm

Sealing Type : Three Side Sealing

Power Consumption : 40KW

Application : Packaging Of Various Granular, Powder, Liquid And Solid Products

Air Pressure : 0.6MPa

Zipper Type : Zipper

Bag Width : 75-500mm

Contact Now

Zipper Bag Making Machine with three side sealing type

Product Description:

The Three Side Sealing & Zipper Machine is a versatile and efficient packaging solution for various types of products. It is specifically designed for the packaging of granular, powder, liquid, and solid products, making it suitable for a wide range of industries such as food and beverage, cosmetics, pharmaceuticals, and more.

Application:

The Three Side Sealing & Zipper Machine is perfect for packaging various types of products, including but not limited to:

Snack foods
Cereals
Dried fruits
Spices
Pharmaceuticals
Cosmetics
And more!

Specifications:

Suitable material	Suitable for various heat sealing composit films
Tube size	Max width:1000mm,max diameter:Ф800mm
Film thickness	0.045-0.15mm(single layer)
Bag making speed	three side sealing: 250 segments/min, Three side zippered bag: 200 segments/min
Bag making width	75-500mm
Bag making length	440mm(longitudinal sealing twice)
Control system	PLC control system
Material traction mechanism	Servo motor system traction
Discharge system	Discharge shaft,tripod or K frame
Braking device	Constant tension encoder magnetic particle control system
Overall power	40kw
Cooling water	About 15L/min
Air supply	0.6Mpa
Power supply	Three phase 380V/50HZ
Weight	Apx5000kgs
Dimension	13×2.×2.2m(L×W×H)

Bag Making Length 440mm Zipper Bag Making Machine With Three Side Sealing Type

Product Tags:

440mm zipper bag making machine

440mm zipper bag machine

three side sealing zipper bag machine

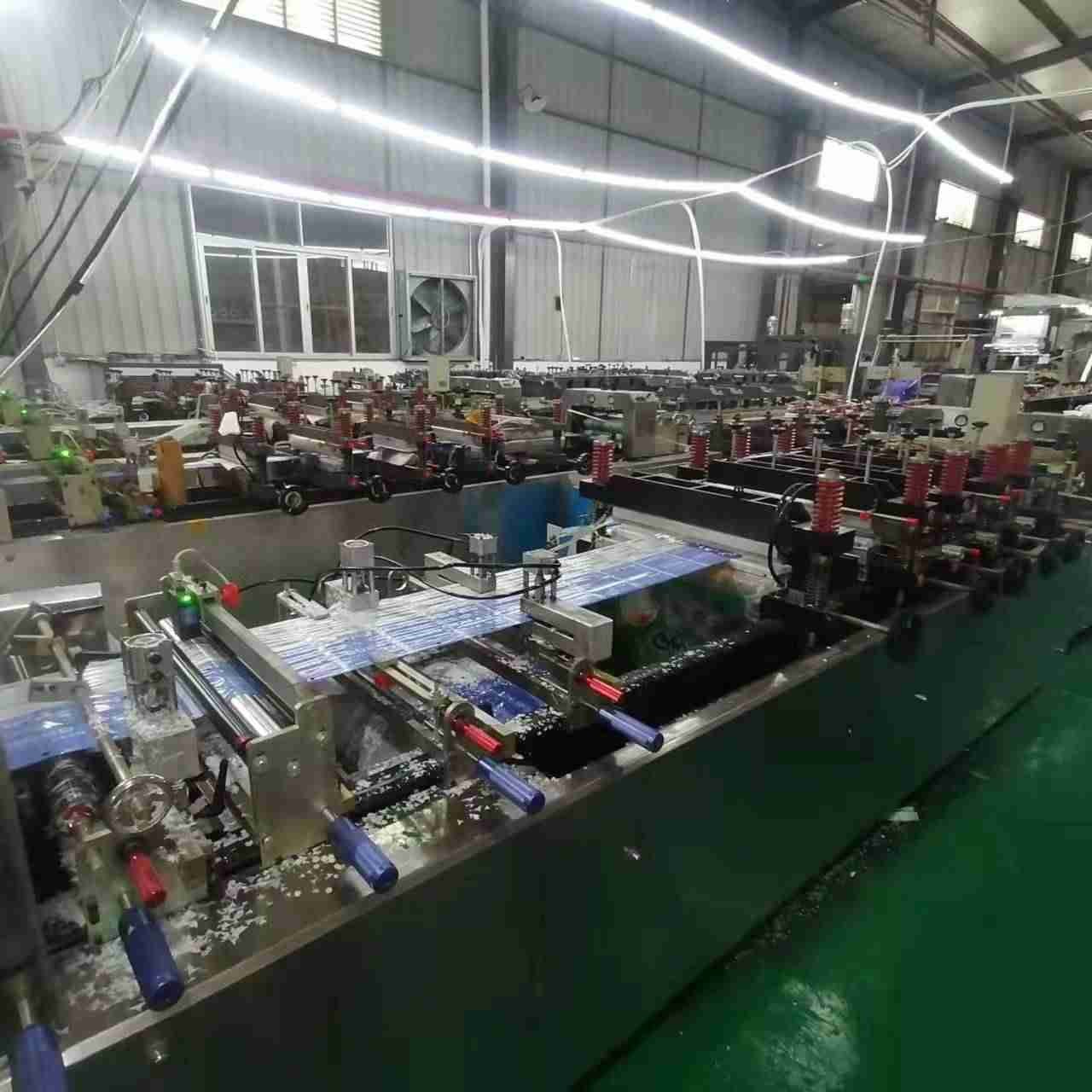

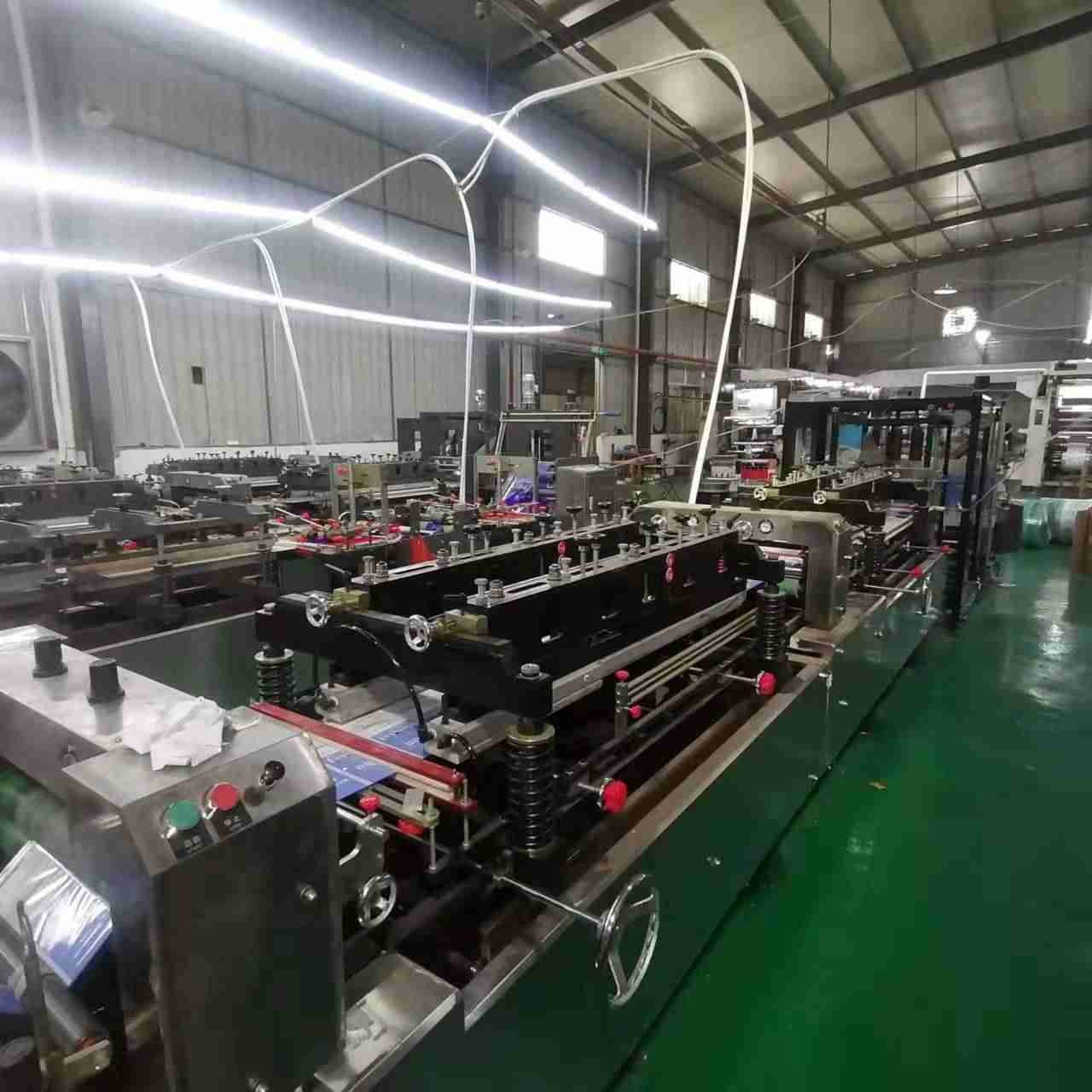

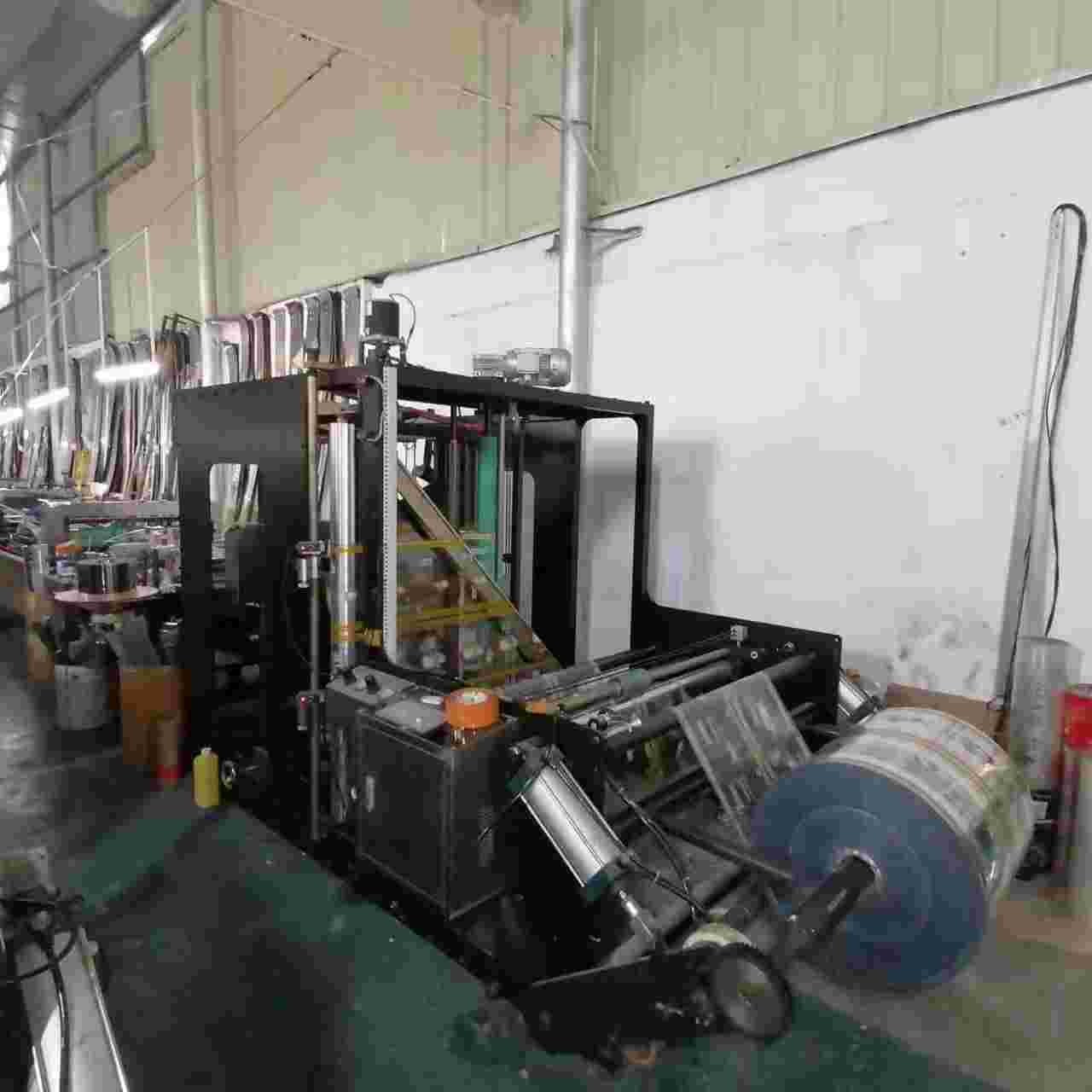

Bag Making Length 440mm Zipper Bag Making Machine With Three Side Sealing Type Images
